Galvanized Standing Seam Cladding Roofing Sheet Machine
Raw Material：PPGI
Material Thickness: 0.3-0.8 Mm
Machine Frame：20mm thick steel wall plate welding
Raw Material：PPGI
Material Thickness: 0.3-0.8 Mm
Machine Frame：20mm thick steel wall plate welding
Product Features
Standing seam cladding roofing sheet machine
A standing seam cladding roofing sheet machine is a specialized piece of equipment designed to manufacture standing seam roofing sheets for architectural and industrial applications. Standing seam roofing is a type of metal
roofing system characterized by vertical panels with raised seams that interlock, creating a distinct profile. This design not only enhances the aesthetic appeal of the roof but also provides durability and weather resistance.
High speed:15m/min

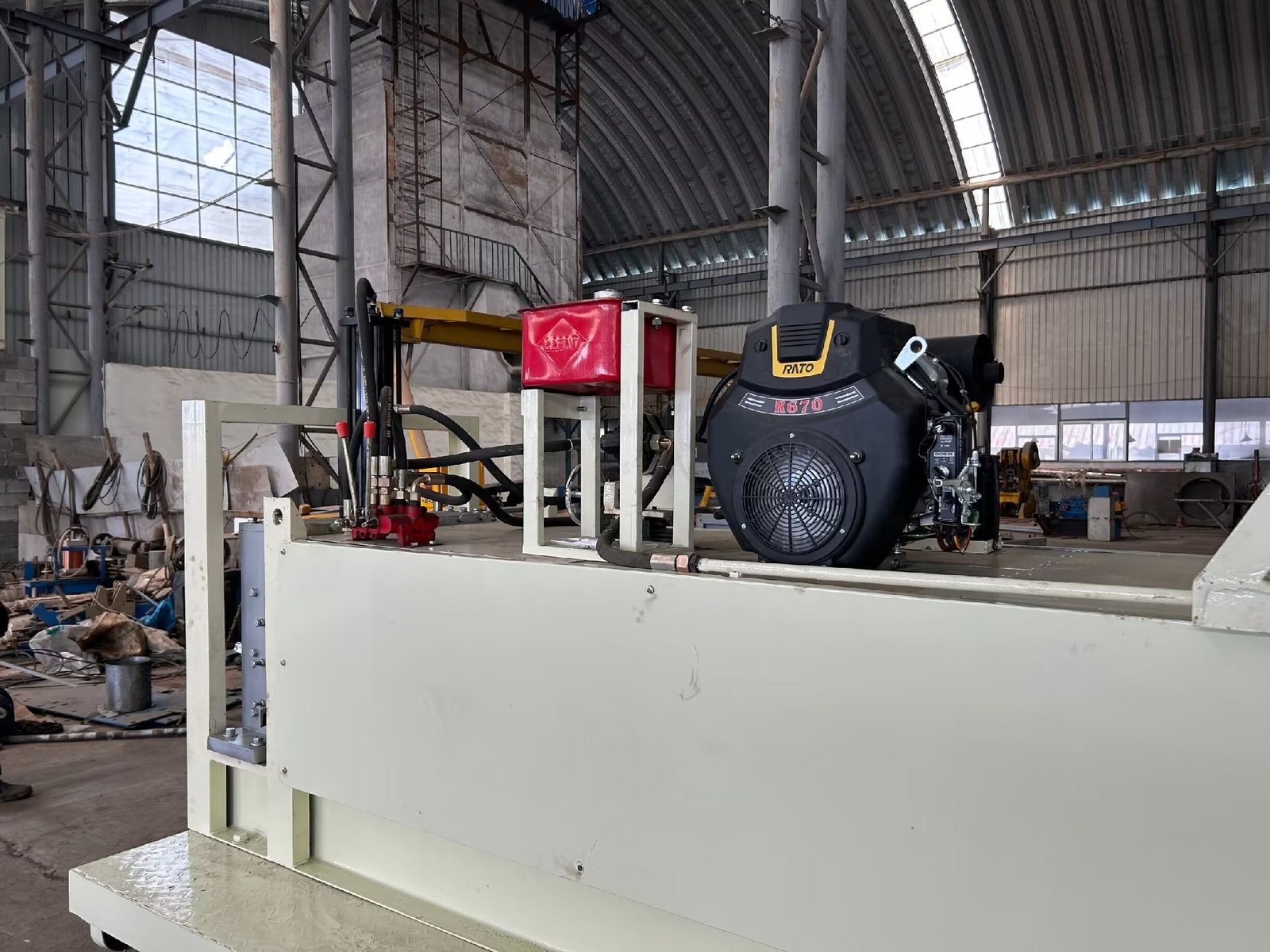

Special Design Cutting Device：Produce mobile machines according to customer needs, which can be directly produced on the construction site.
5 Tons Decoiler
Carrying capacity: 5 tons
Max coil width: 700 mm
Feeding speed: 15 m/min (adjustable)
Feeding Device
Rubber rollers protect raw material surface in the operating of standing seam cladding roofing sheet machine.
Roll Forming Device
1.45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.
2. Each roller has number and with keynotes, it can fix on the shaft stablely
Hydraulic Cutting Device
1.Adopt double oil cylinder more stable than single oil cylinder
2.Hydraulic motor power 5.5 kw with energy accumulator
3.Cutter material :GB-Cr12 with heat treatment
4.Cutting length tolerance ±10m/2mm
5.Cutting feature :Steady and safe working condition and low sounds
PLC control system
Brand
PLC brand : Delta
Inverter brand: Delta Low electric part: Schneider
Encoder: Omron
Function:
1.Adopted aviation plugs,easy installation of standing seam roof sheet roll forming machine. 2.Full automatic easy operation. 3.Operation language:English(provide customized)
4.National coinsurance,spar parts Brand Siemens and Schneider.
Hydraulic station
3kw motor with cooling system for long time serving life.
Updated on January 26, 2024
PARAMETER
Raw Material：PPGI
Material Thickness: 0.3-0.8 Mm
Machine Frame：20mm thick steel wall plate welding
Machine Structure:20mm thick steel wall plate welding
Material Of Rollers:45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.
Forming stations:9 stations
Diameter of shafts:Φ80mm
Material of shafts:45# Steel Tampering Treatment, Prevent Deformed And Improve The Hardness
Forming speed:About 15m/min
Voltage:380v 50hz 3phase Or As Request
Transmission:Chain drive
Work power:5.5 kw ( gear reducer and servo motor driving)
Cutting blade material:Cr12Mov quenched treatment to improve hardness
Cutting type:Hydraulic cutting
VIDEO
FAQ
1. How to visit your company?
1.Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2.Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
2. Can you be responsible for transport?
Yes, please tell me the destination port or address. we have rich experience in transporting.
3. What will you do if the machine is broken?
We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
4. Do you sell only standard machines?
No, most of our machines are customized according to customers specifications, also adopt top brand components.
5. Do you have after-sales support?
Yes, we are happy to provide advice and we also have skilled technicians available across the world.
6. What's your payment terms and delivery time?
30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
7. How can we be assured that you will deliver us quality machine with spare parts ?
1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.8. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
