Product Features

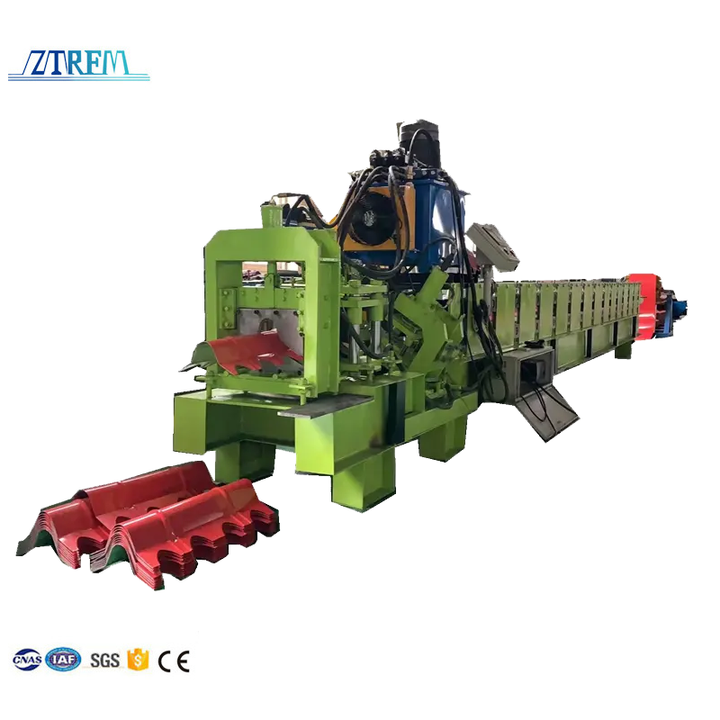

Roof Panel Ridge Caps making machine is to make ridge cap suitable for steel roofing sheet top,we can design the machine as per the different sizes of the Ridge caps.We supply the whole production line which include
the Decoiler,roll former,punching press and cutting device and run-out table.The PLC control system can control the machine's speed,can produce ridge caps metal roof with different lengths and quantity.Very easy to operate.

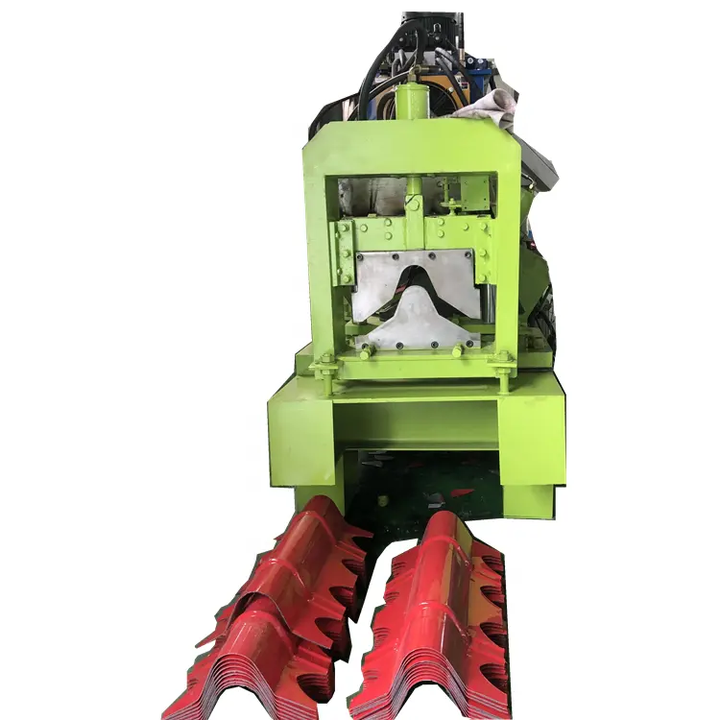

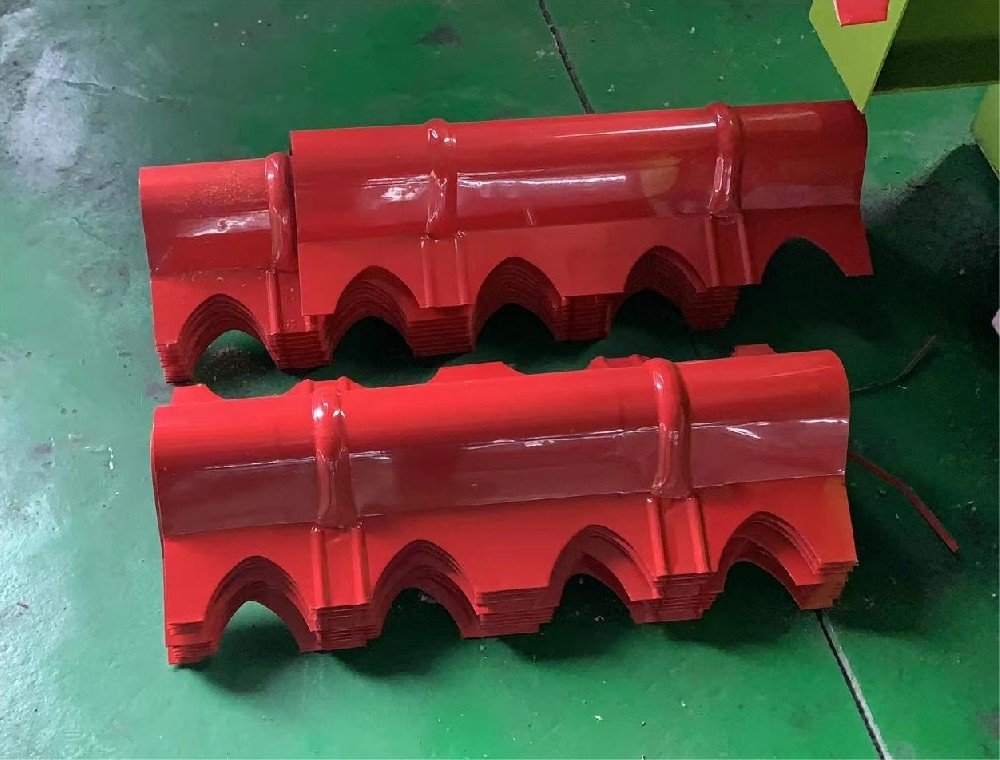

The application for the finished product:

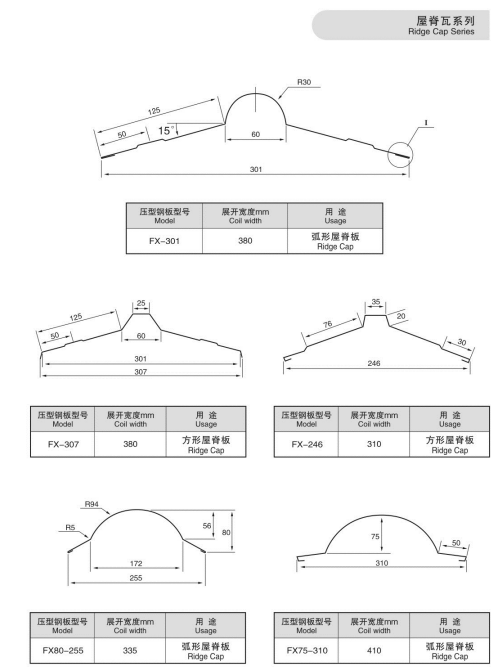

Profile drawing for reference:

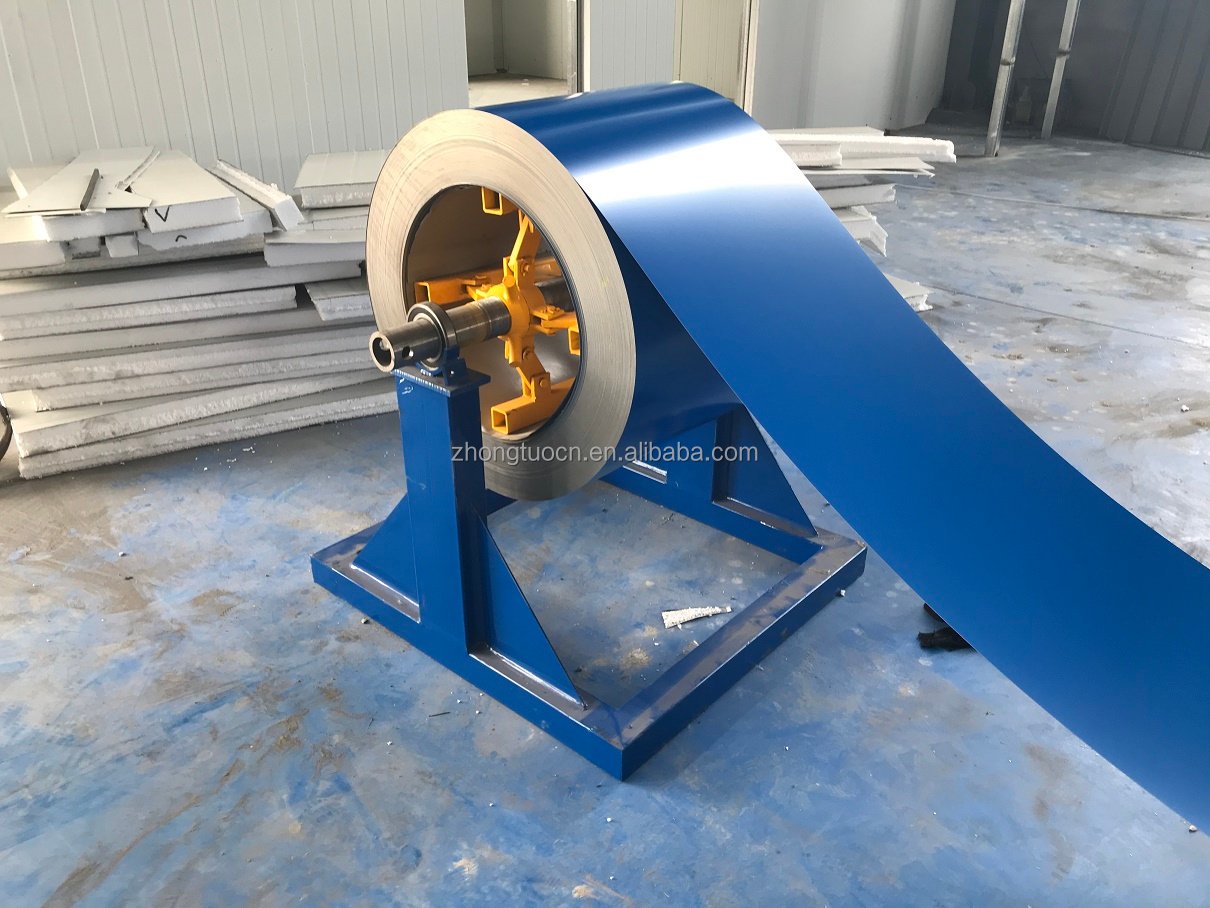

Manual Decolier For Free
The manual decolier you can get is for free if you purchase our ridge caps roll forming machine.
Usage: It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system.
1. Loading capacity: 5T
2. Uncoiling width: 1000mm
3. Inner diameter: 450-550mm
Entry Beach
Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

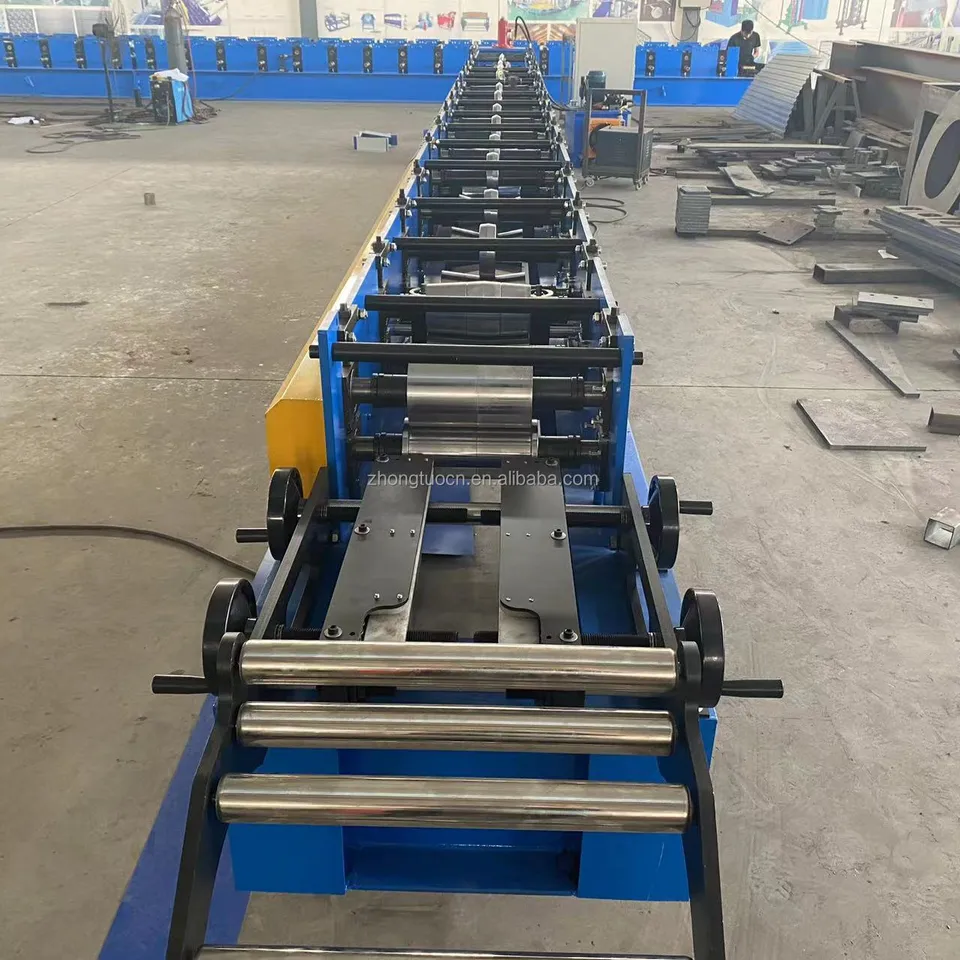

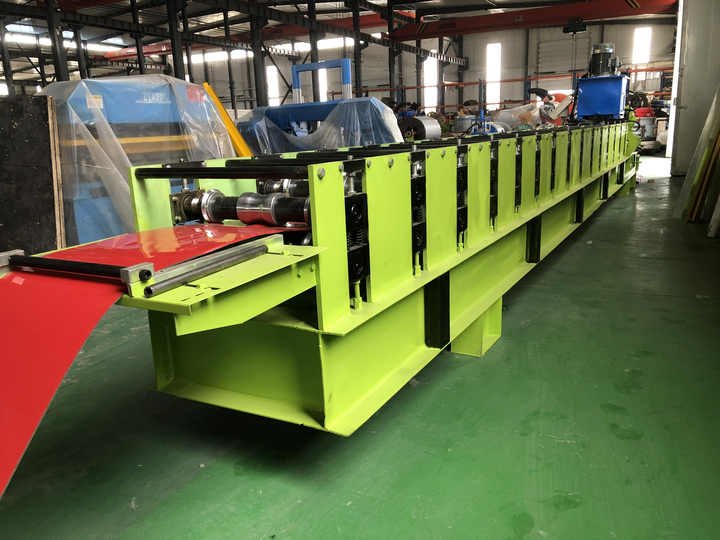

Main Roll Forming System
Feature: Ensure stability , precision and lifetime.
1. Voltage: 380 V/50HZ 3Phase or as your required
2. Roller fixer: middle plate
3. Frame: 350 H steel welded
4. Drive mode: chain
5. Material of rollers: 45# steel, surface hard chromium plating.
6. Material of shafts: 45# steel
7. Diameter of shafts: φ 60mm
8. Number of rollers: 11 rollers
9. Main power: 3 kw

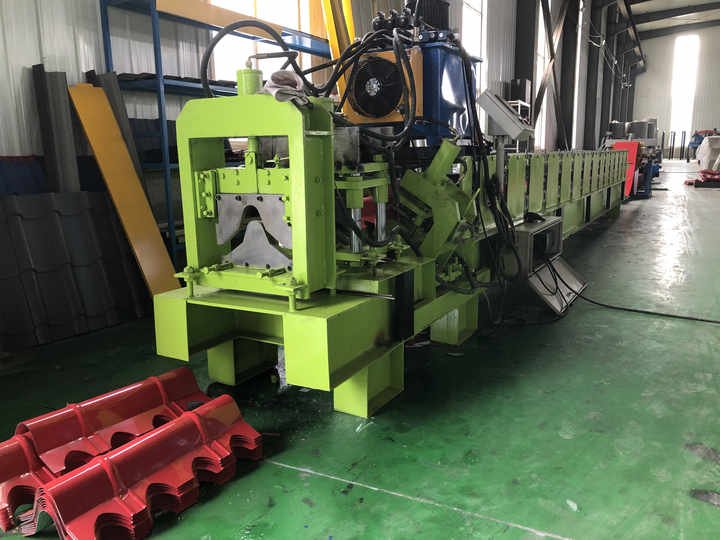

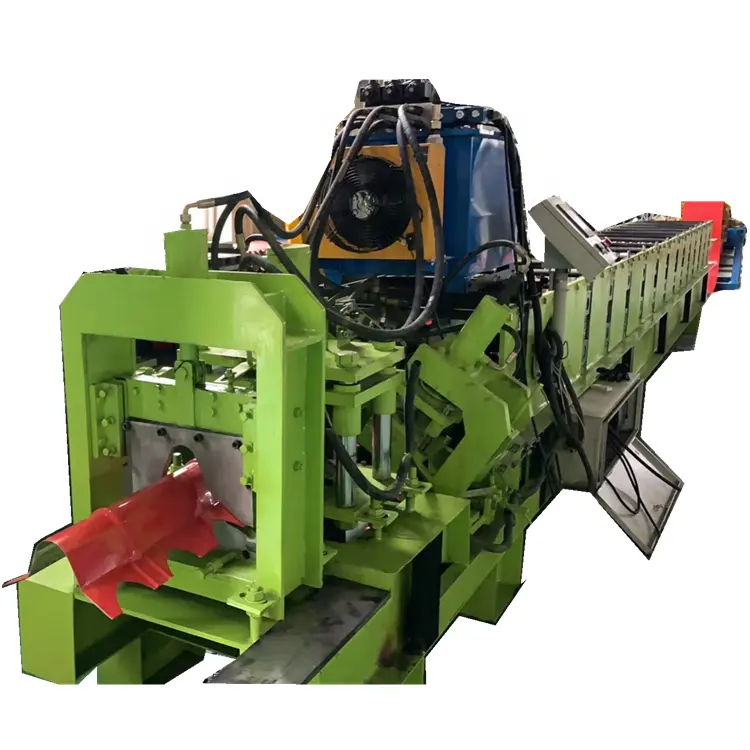

Step-formed mechanism
Feature: it is used to make the step , the glazed tile's final formed.
Material of mold: Cr12 quenched

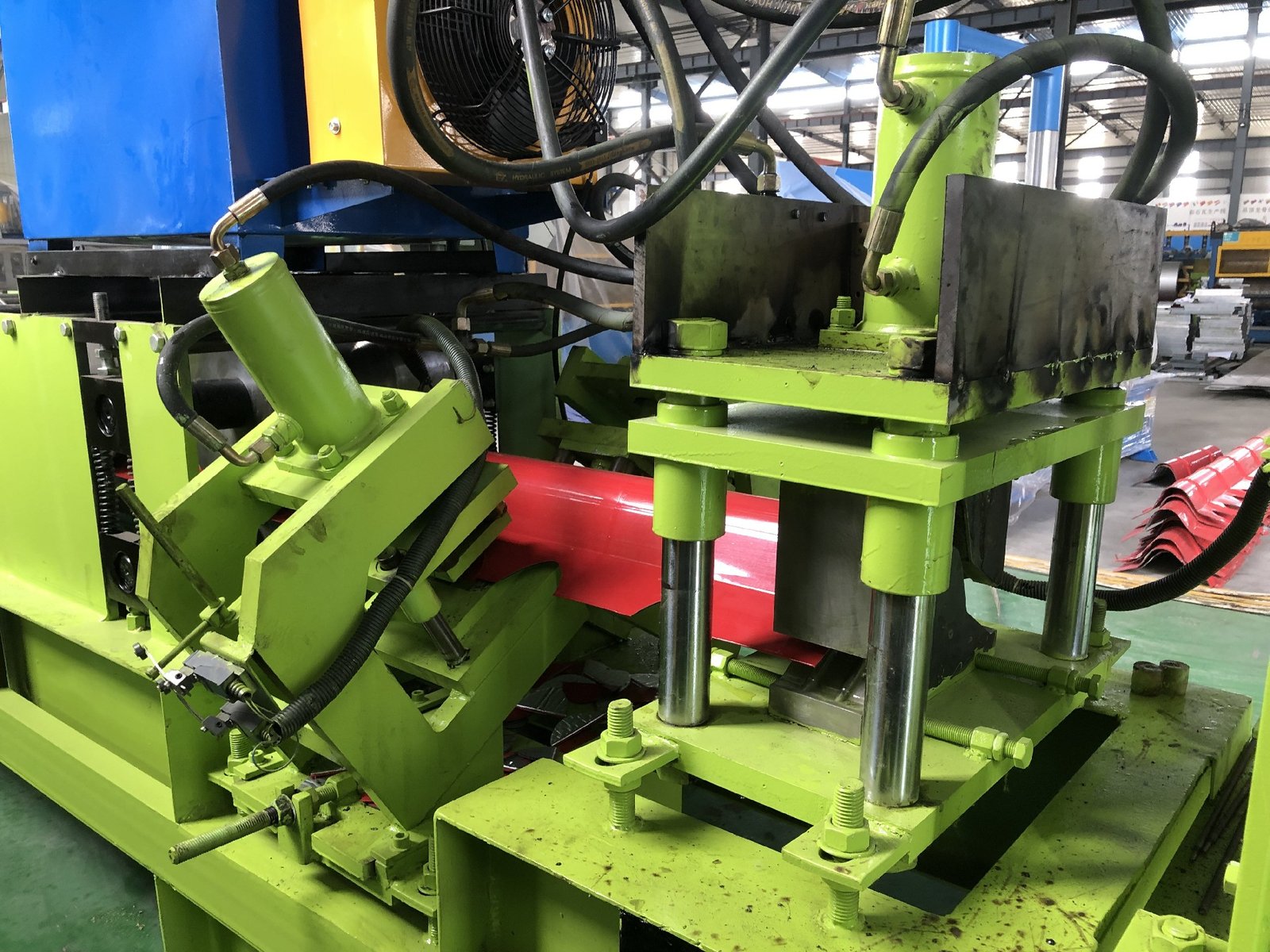

Shearing Mechanism
1. Feature: Ensure stability, precision and cutting speed
2. Function: Automatic cutting controlled by PLC
3. Material of blades: Cr12 quenched
4. Power supply: hydraulic power

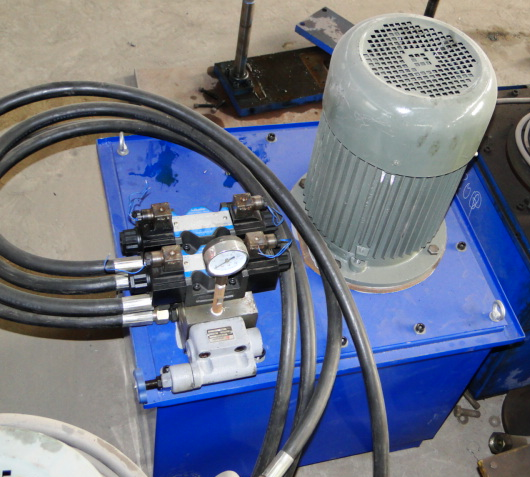

Hydraulic Station
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

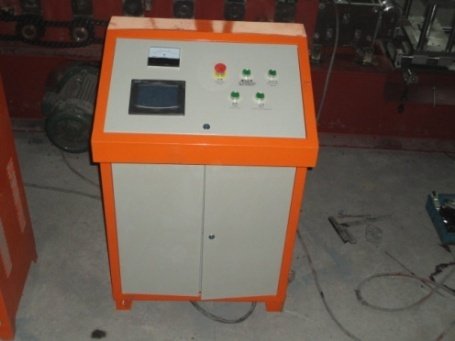

PLC control system
Feature: Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
Updated on January 26, 2024
PARAMETER
Formed Material:PPGI,GI,AI
Thickness:0.3-0.8mm
Roller station:13 rows(As your requirement)
Diameter of shaft:70mm solid shaft
Material of rollers:45# steel, hard chrome plated on the surface
Machine body frame:350 H steel
Drive:Chain transmission
Transmission:By chains
Cutter:cr12mov material, no scratches, no deformation
Motor Power:4KW
Hydraulic system power:5.5KW
Voltage:380V 50Hz 3Phase
Forming Speed:2-3m/min
VIDEO
FAQ
1. How to visit your company?
1.Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2.Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
3.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

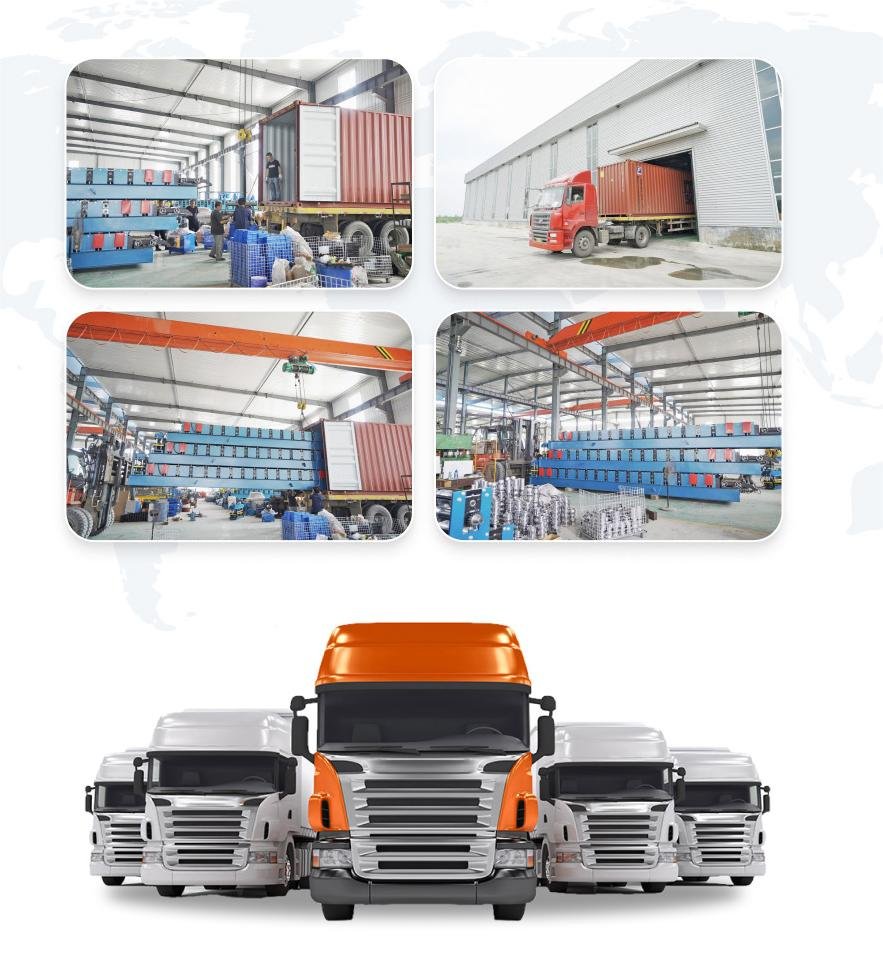

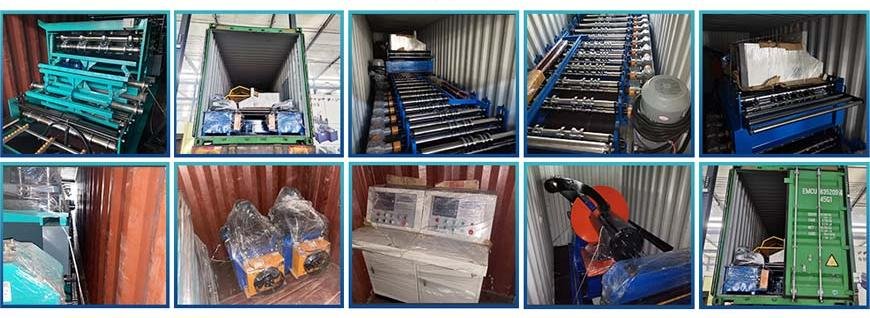

2. Can you be responsible for transport?
Yes, please tell me the destination port or address. we have rich experience in transporting.
3. What will you do if the machine is broken?
We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
4. Do you sell only standard machines?
No, most of our machines are customized according to customers specifications, also adopt top brand components.
5. Do you have after-sales support?
Yes, we are happy to provide advice and we also have skilled technicians available across the world.
6. What's your payment terms and delivery time?
30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
7. How can we be assured that you will deliver us quality machine with spare parts ?
1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
2. We can send the technicians to the buyer's factory for the installation of the machine.8. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
