Glazed Tile Roll Forming Machine-Glazed roof sheet making machine-roll forming machine-geitgroup

DESCRIPTION PARAMETER VIDEO PICTURE Q&A

Product Features

Our high-speed metal glazed roofing sheet making machine is a sophisticated piece of equipment designed for the production of glazed metal roofing sheets. These sheets are commonly used in the construction industry for

roofing and cladding applications due to their durability and aesthetic appeal. The machine is capable of producing these sheets at a high speed, efficiency, and with a high level of precision.

Design Idea：

High speed:0-8m/min

Special Design Cutting Device：As azerbaijan customer’s requirement different with others,for the cutting device we made special design and obtain a patent.

Stable Transmission: gearbox drive.

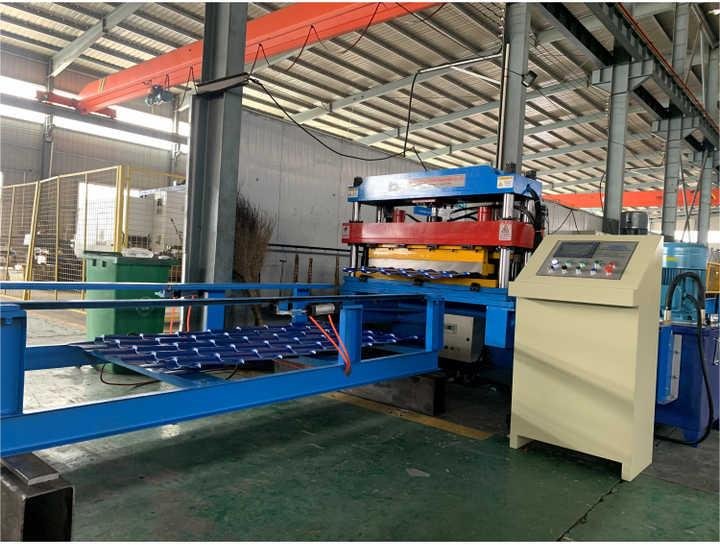

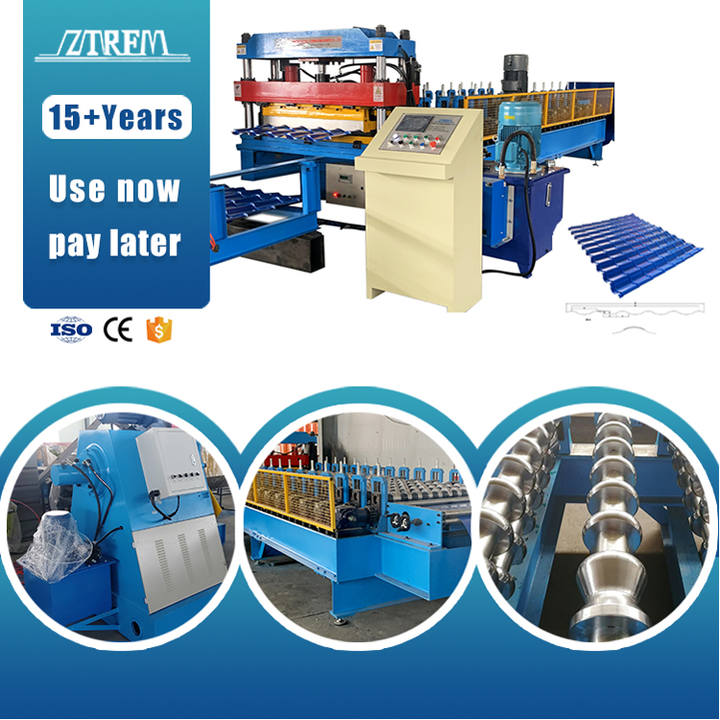

Glazed tile roll forming machine

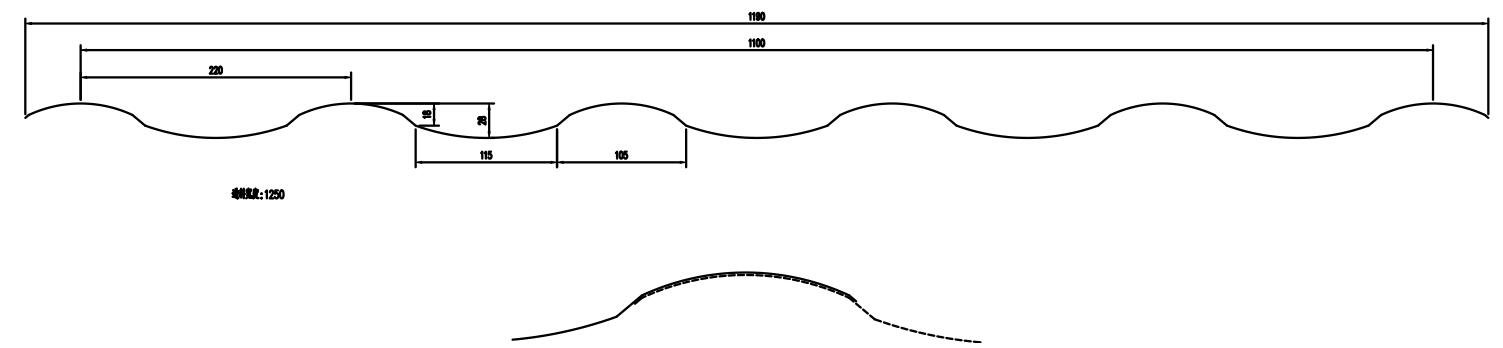

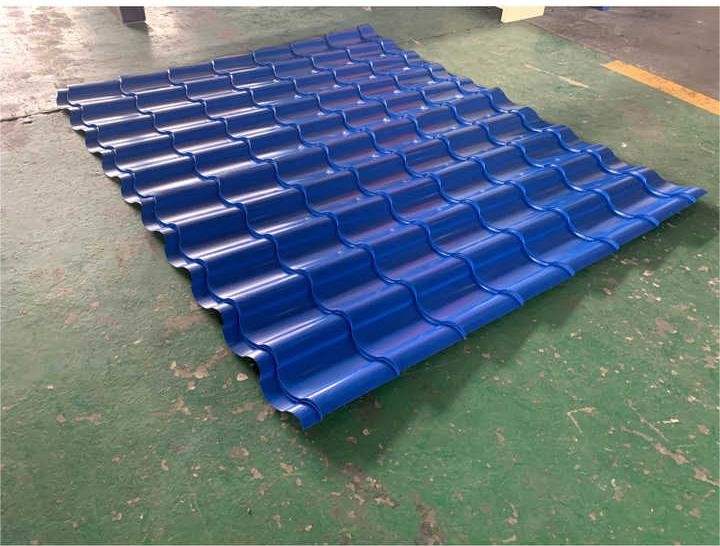

Profile drawing for reference:

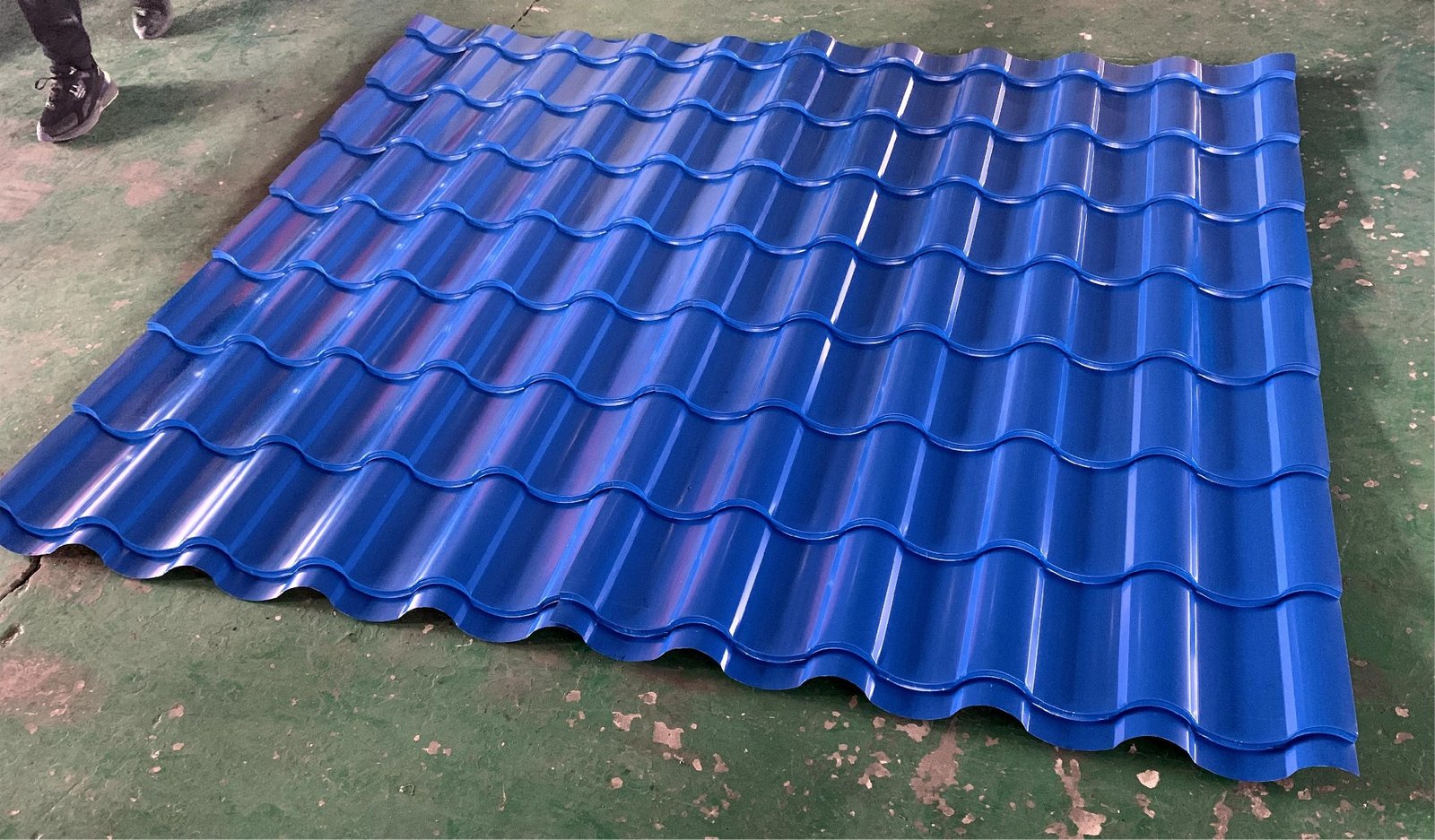

this type glazed tile roof sheet very hot sale in Azerbaijan, normally material feeding width1250 mm,and Product effective width 1000 mm.

As we sold many glazed tile machines to Azerbaijan,we have rich experience on it to confirm the finished product good and suit for market.

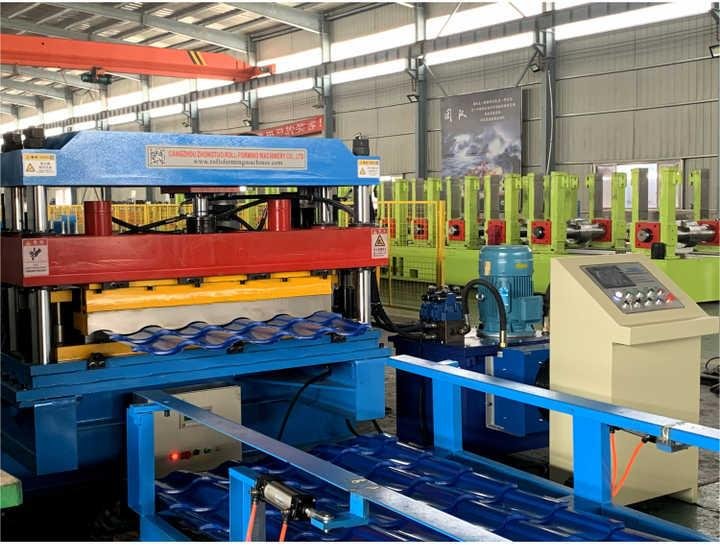

Glazed tile roll forming machine

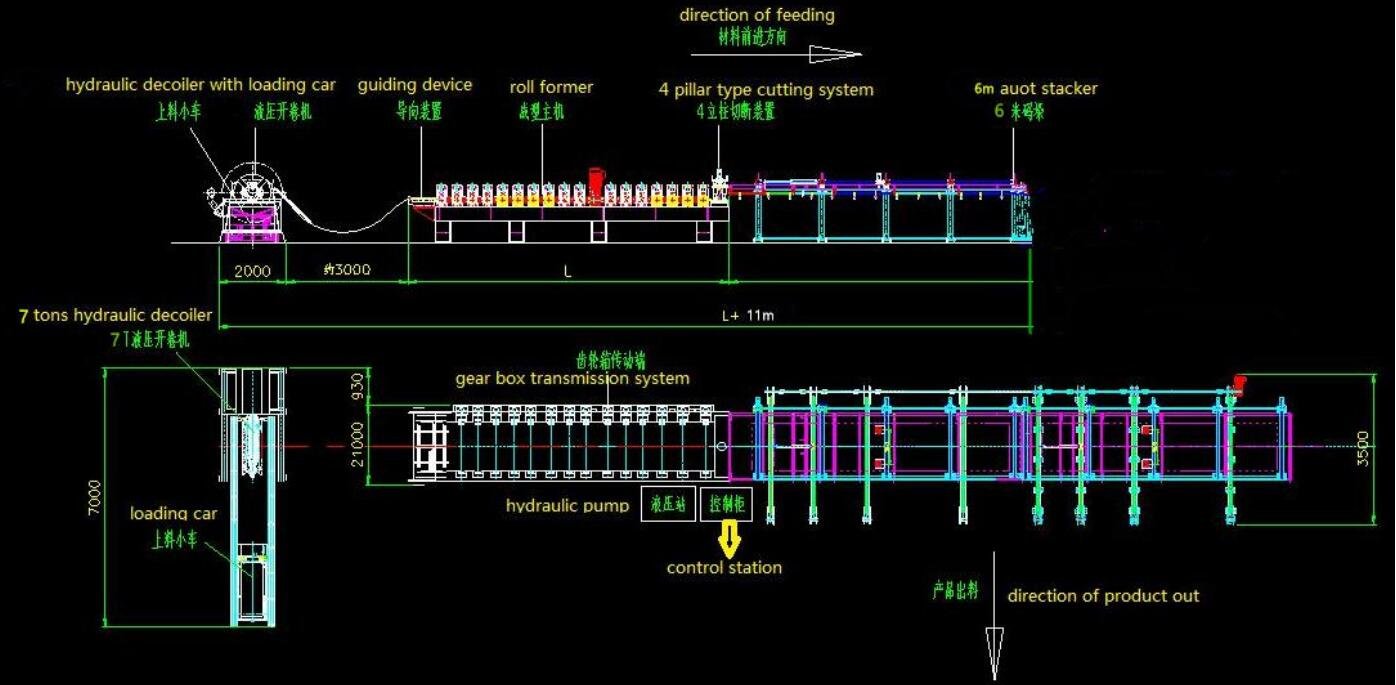

Processing Flow

Decoiler-Feeding Material-Roll Forming-Cutting-Receiving The Product

Glazed tile roll forming machine

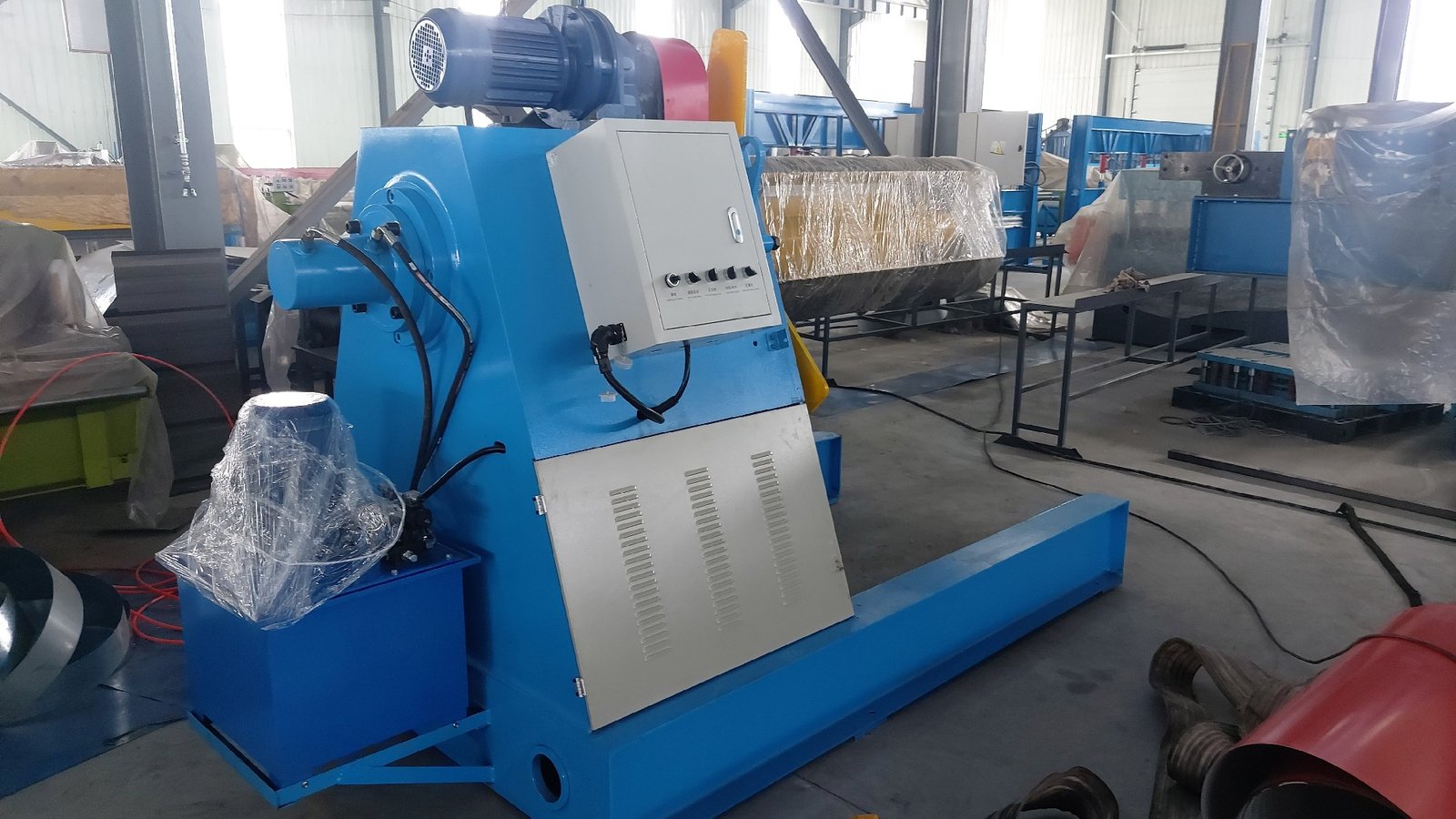

6 Tons Hydraulic Decoiler

Carrying capacity: 6 tons

Max coil width: 1250 mm

Feeding speed: 0-40 m/min (adjustable)

Driving motor power: 3 kw

Hydraulic motor power: 5.5 kw

Structure: welding by the steel plates and profiled bar.

The decoiler is equipped with the brake system

Glazed tile roll forming machine

Feeding Device

1. Rubber rollers protect raw material surface

2. With handwheels easy adjust for feeding different thickness raw material.

3.the platform width is adjustable by hand wheel, have the bearing inside to protect the edge of the steel sheet.

Glazed tile roll forming machine

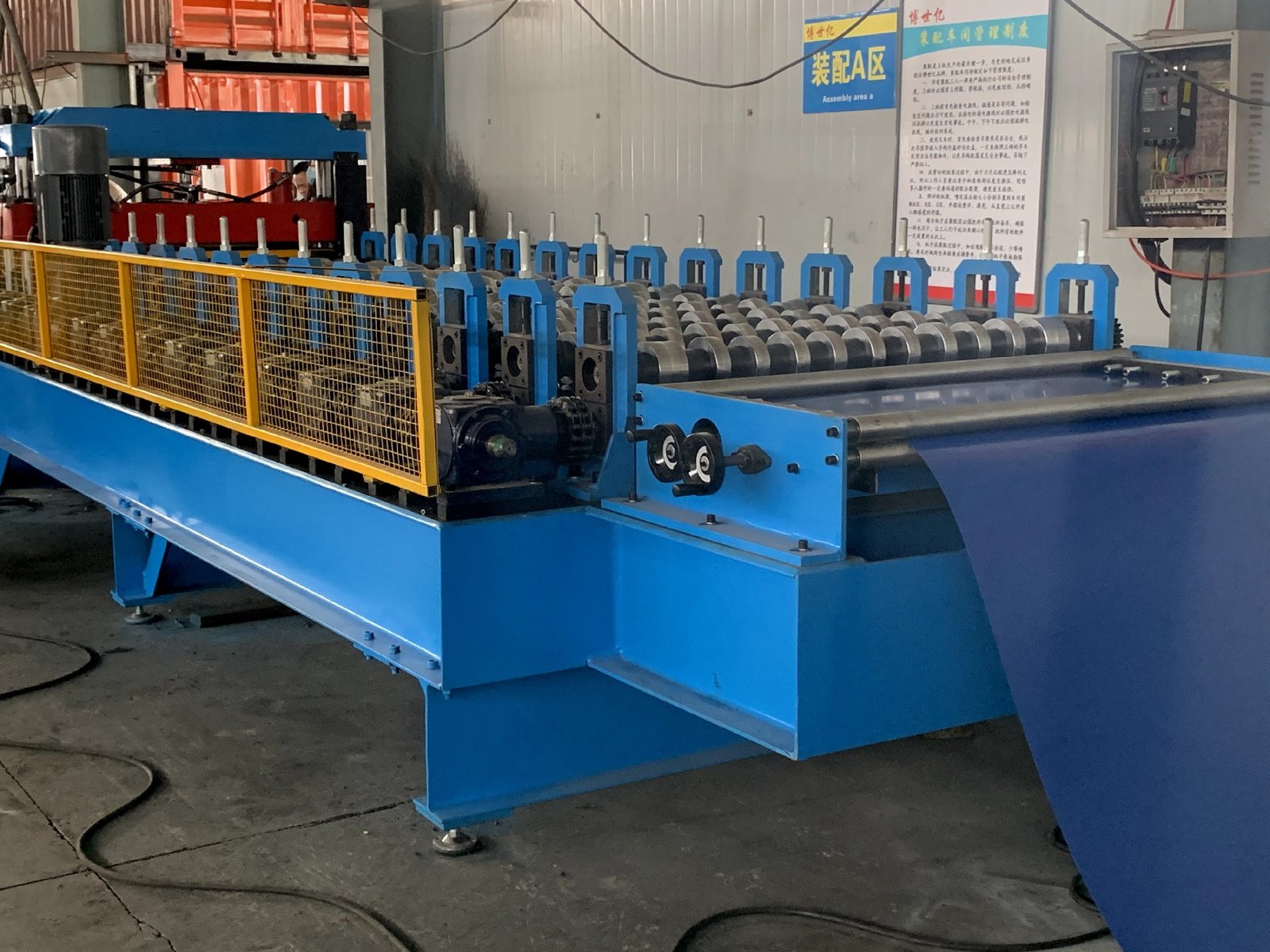

Roll Forming Device

1.45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.

2. Each roller has number and with keynotes, it can fix on the shaft stablely

Glazed tile roll forming machine

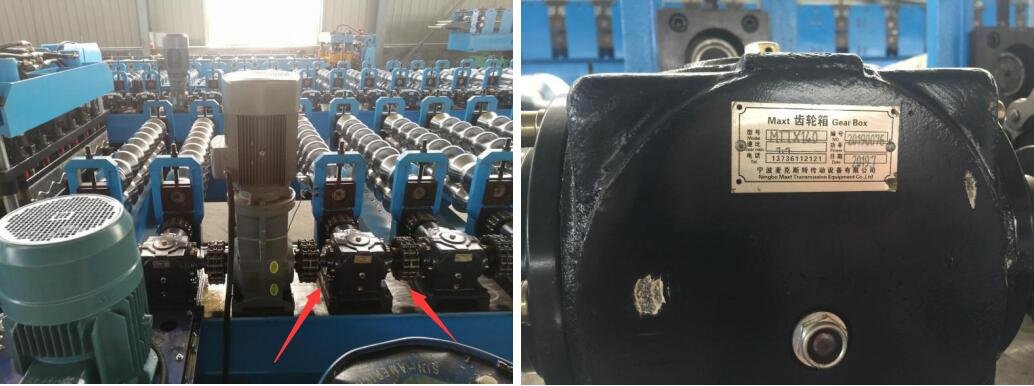

Transmission Device

Gearbox transmission,stable and no loose.

Glazed tile roll forming machine

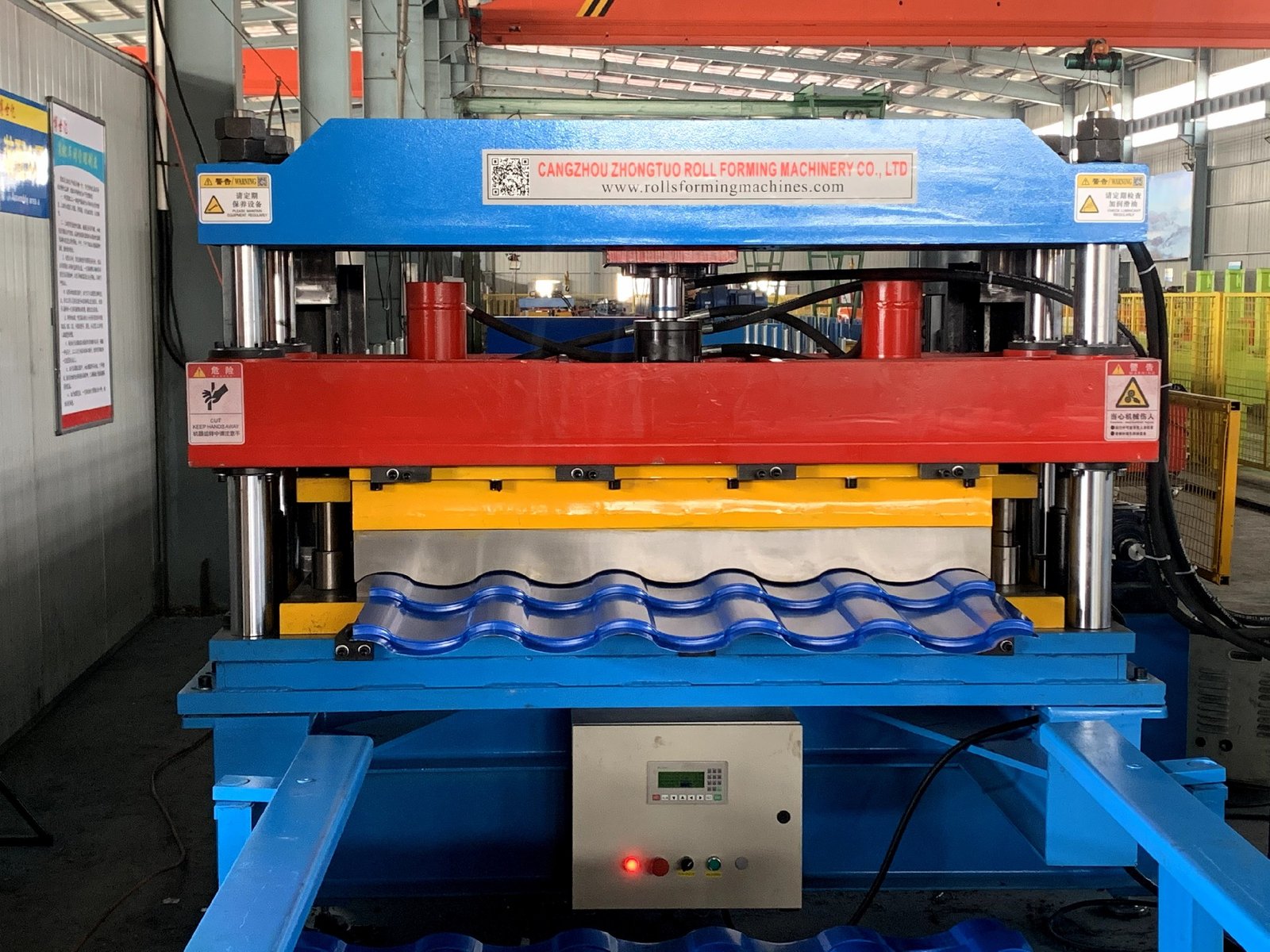

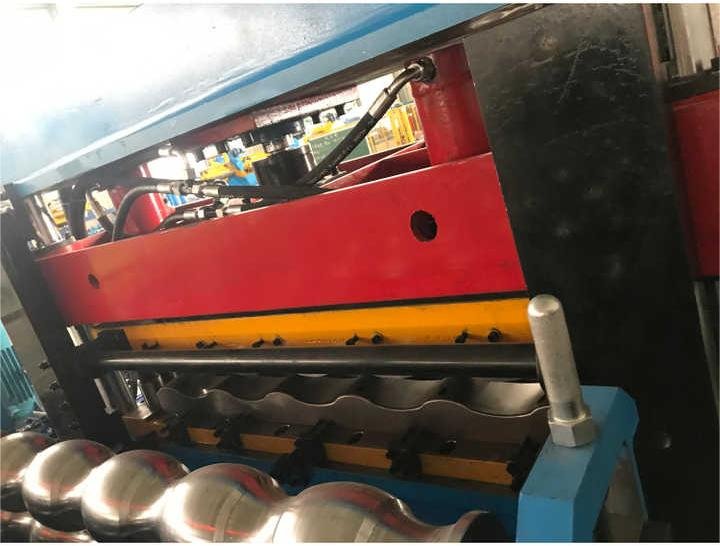

Hydraulic Cutting Device

1.Adopt double oil cylinder more stable than single oil cylinder

2.Hydraulic motor power 5.5 kw with energy accumulator

3.Cutter material ：GB-Cr12 with heat treatment

4.Cutting length tolerance ±10m/2mm

5.Cutting feature ：Steady and safe working condition and low sounds

Glazed tile roll forming machine

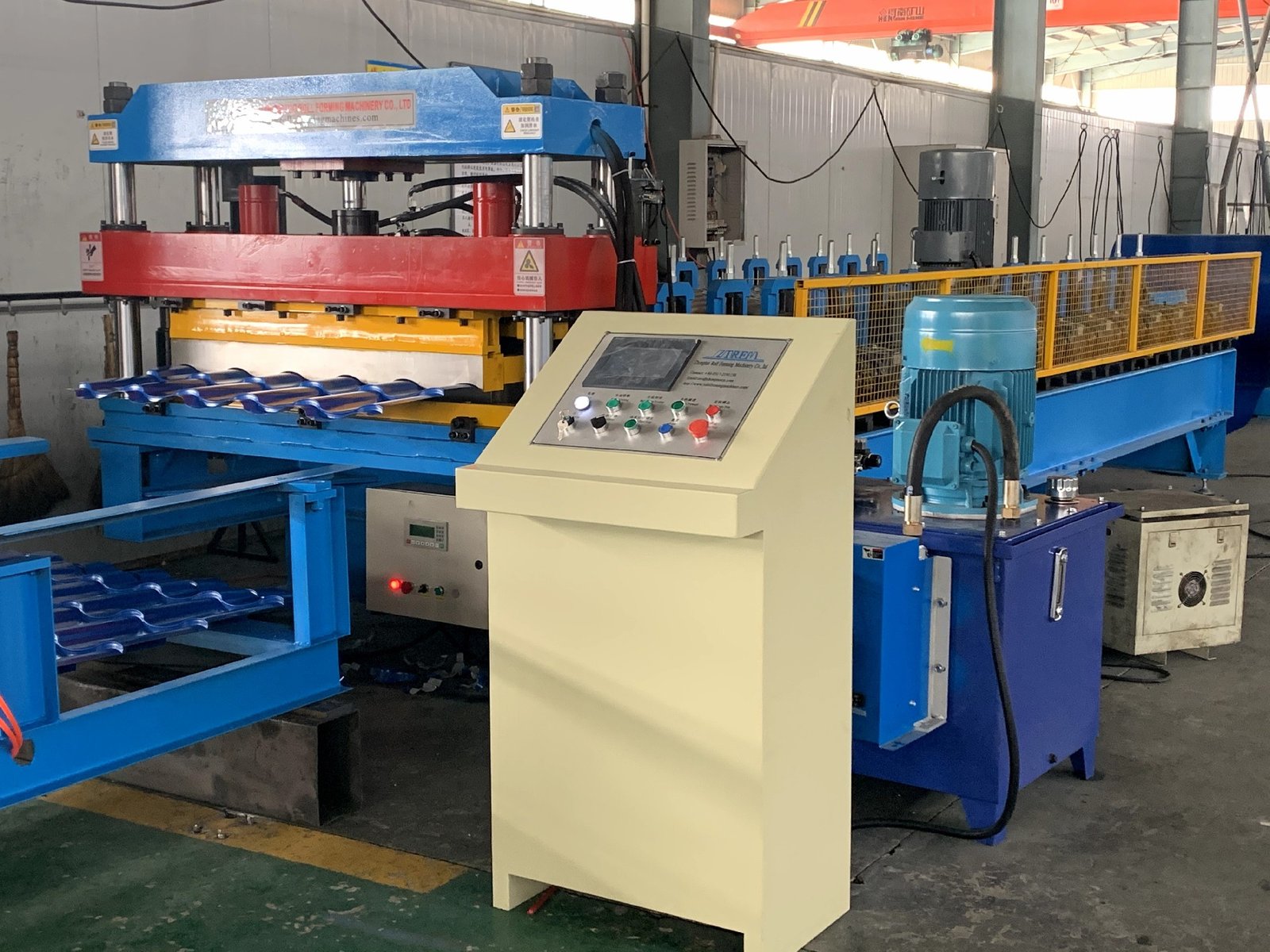

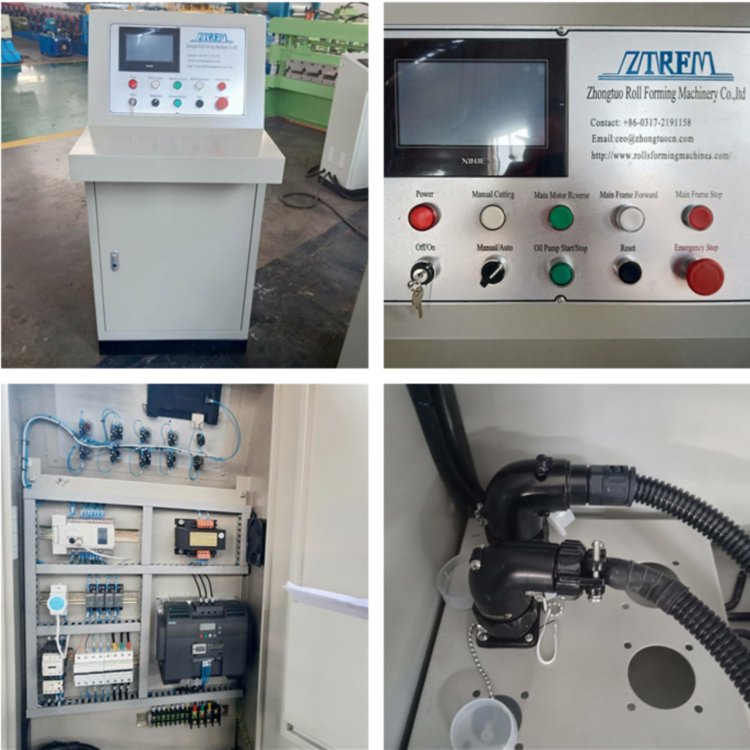

PLC control system

PLC brand : Delta

Inverter brand: Delta Low electric part: Schneider

Encoder: Omron

Function:

1.Adopted aviation plugs,easy installation. 2.Full automatic easy operation. 3.Operation language:English(provide customized)

4.National coinsurance,spar parts Brand Siemens and Schneider.

Glazed tile roll forming machine

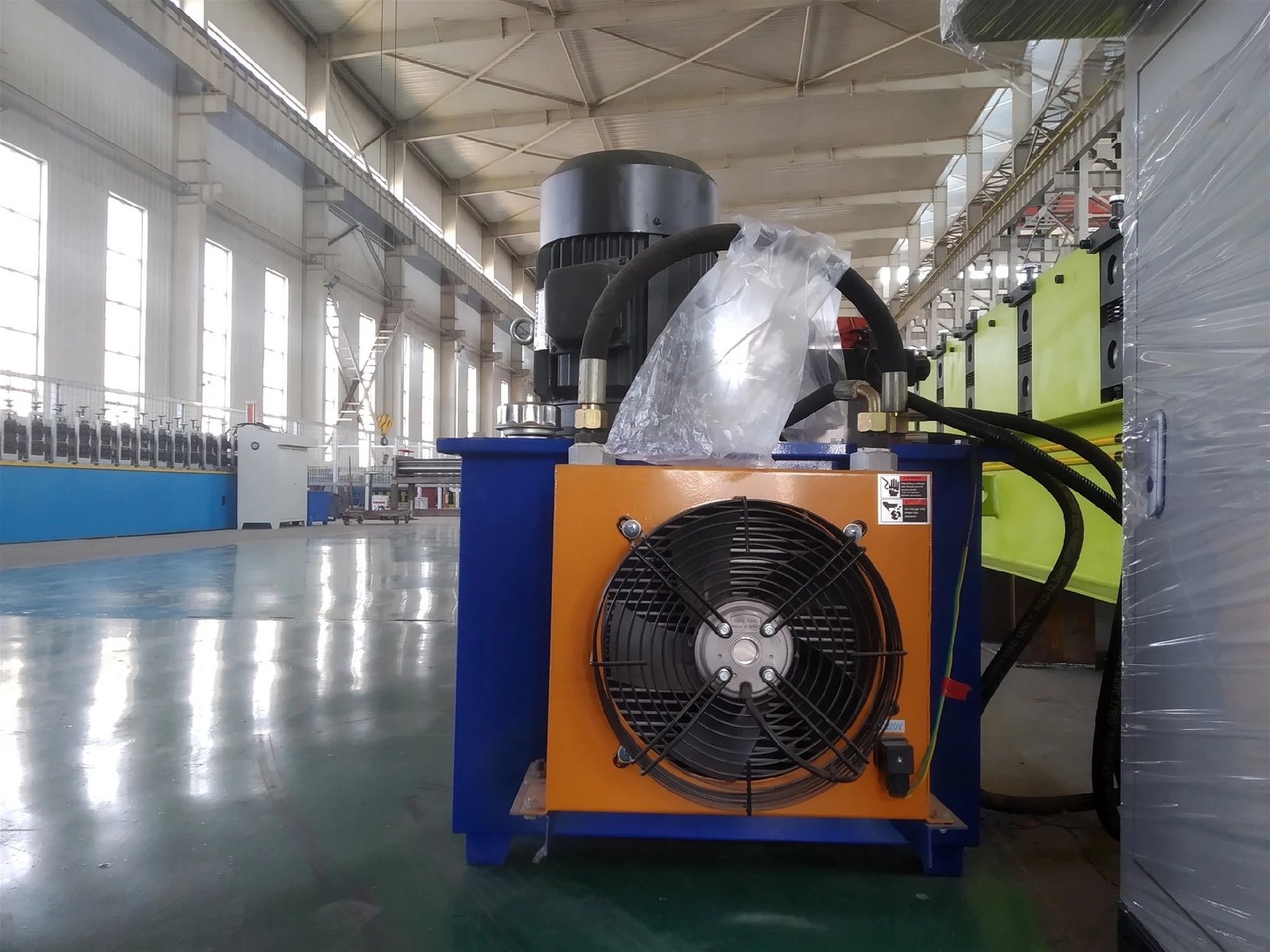

Hydraulic station

4.5kw motor with cooling system for long time using.

Glazed tile roll forming machine

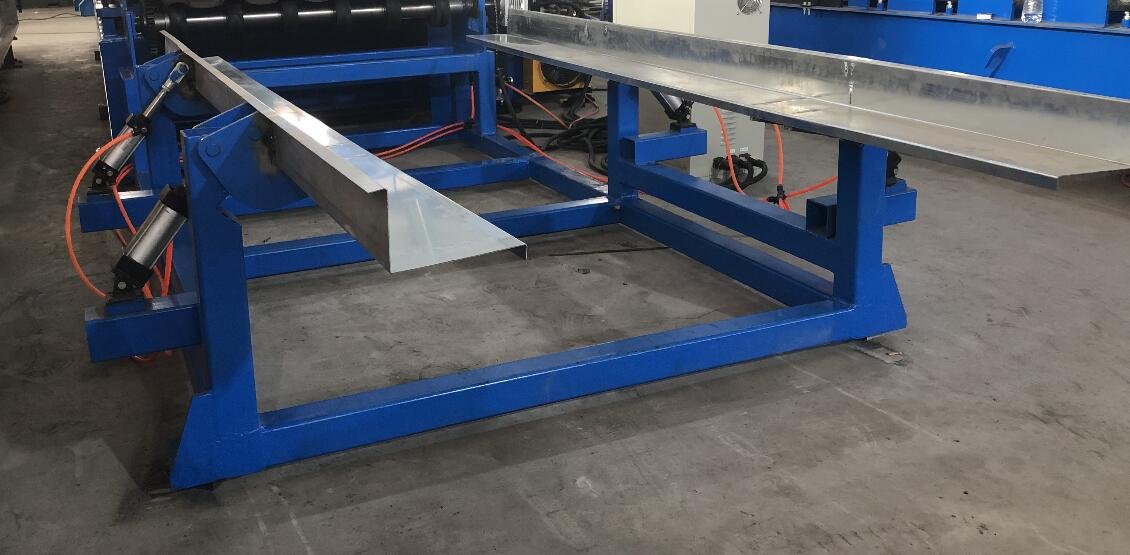

Automatic Stacker

Stacking principle: the top sheet will not damage the sheet below, the profile of the sheet below will match the profile of the top sheet

Max. length of the sheet: 3000 mm

Max. width of the sheet: 1250 mm

The thickness of stack: 300 mm

Carry arms control: pneumatic (the air pump is provided by the user)

Push system: cylinder driving and controlled by control station, function: to align the sheets

Glazed tile roll forming machine

Updated on January 25, 2024

PARAMETER


Raw Material:PPGI

Material Thickness: 0.32-0.8 Mm

Machine Frame:350# H Steel Frame Welded

Machine Structure:Vertical Arch Frame Structure

Material Of Rollers:45# Steel,Chromed Treatment (Cr Thickness:0.05 Mm), Anti-Corrosion,Increase Hardness, Ensure The Precision And Good Abrasion Performance.

Forming stations:16 stations

Diameter of shafts:Φ80mm

Material of shafts:45# Steel Tampering Treatment, Prevent Deformed And Improve The Hardness

Forming speed:About 0-8m/min

Voltage:380v 50hz 3phase Or As Request

Transmission

1.Gear Box Transmission(Bevel Gear Inside)

2.Material Of Gear: 20 Crmnti

3.Material Of Gear Box: Iron Casting

4.The connection between gear boxes are chains

5.Gear box will connect with the rolling station one for one

6.Advantage: can improve the speed directly after cutting

Work power:11 kw ( gear reducer and servo motor driving)

Cutting blade material:Cr12Mov quenched treatment to improve hardness

Cutting type:Hydraulic cutting
